Distance Crouton

Find tutorials with example code, libraries, datasheets, and documentation on our learning page!

https://learn.breadstick.ca/breadstick/breadsticks/support-boards/i2c-devices/distance-crouton

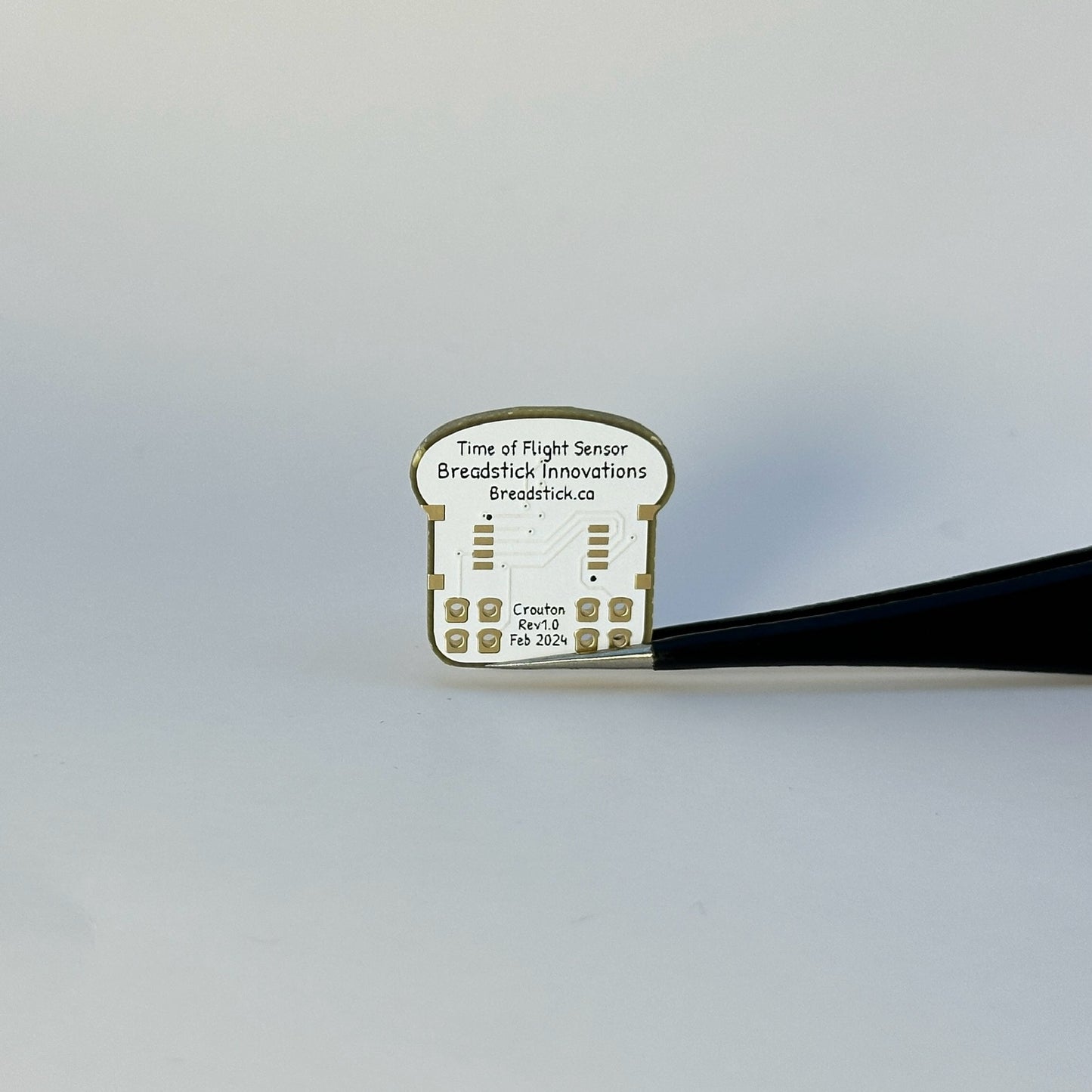

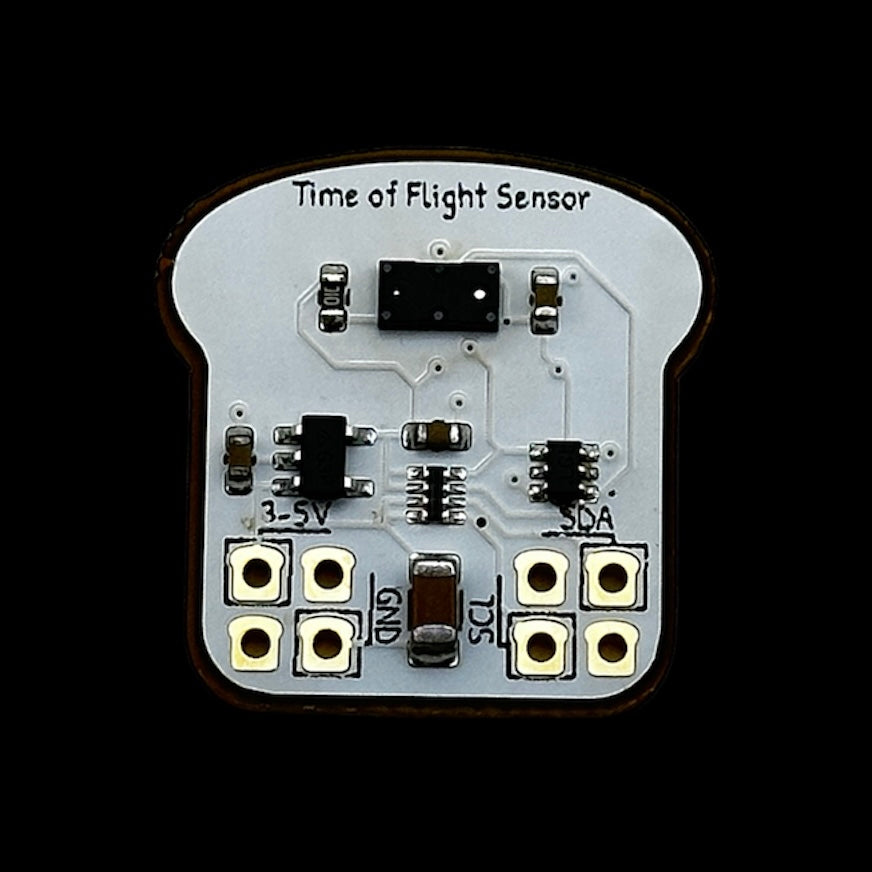

The VL53LFCD gives our I2C Distance Crouton the ability to accurately measure distances up to 1.3 meters! Using pulses of light, it measures time of flight to achieve high-accuracy proximity measurements.

This board comes equipped with a 3.3V regulator and level shifter, so it works with both 5V and 3.3V logic. It comes with your choice of straight or right-angle header pins to solder on. These boards are designed to be Stemma QT compatible, so we've made the optional connectors and cables available in-store.

Distance:

• 1mm to 1300mm

Laser:

• Class 1 Laser Product
• https://en.wikipedia.org/wiki/Laser_safety#Class_1

Our Learning Page will equip you with everything you need to build amazing projects. Our community Discord Server is where you'll find others like yourself, sharing their projects, asking for help, and helping one another. We look forward to chatting with you and seeing all the amazing things you build!
