Pinecil - Smart Mini Portable Soldering Iron

Pinecil - Smart Mini Portable Soldering Iron

5 total reviews

Regular price $64.95 CAD
Regular price Sale price $64.95 CAD
Sale Sold out
Shipping calculated at checkout.

The Pinecil is a smart mini portable soldering iron with a 32-bit RISC-V SoC featuring a sleek design, auto standby and it heats up to an operating temperature in just 6 seconds!

  • Dual power input design: 1) USB-C supports both PD and QC 3.0 and; 2) DC5525 barrel DC jack.
  • Speedy Rapid Warmup: Reaches operating temperature in 6 seconds if using a supported power supply. Support for on-demand rapid boost feature.
  • Adjustable soldering tip temperature which can be set between 100° C and 400° C using the adjustment buttons and an easy-to-read OLED display.
  • Portable: it features a sleek and slim design, comprised of an SAE 304 stainless steel core housed inside a polycarbonate shell.
  • Auto standby mode engages when it is not in use ensuring the user's safety.



The Pinecil pairs perfectly with this 65W Power Supply or this 120W Power Supply and USB-C cable

Specs

PACKAGE
  • Dimensions: 15cm x 9cm x 2.2cm
  • Weight: 80 grams
BODY
  • Dimensions:  155mm with solder tip / 103mm without solder tip x 12.8mm x 16.2mm
  • Weight: 28g with solder tip / 18g without solder tip
  • Build:  Plastic with metal clip (Handle)
  • Colour: Black (case)/ Green (Sleeve)
PLATFORM
  • OS: Ralim’s IronOS build
  • Chipset: Bouffalo BL-706
  • CPU: 32-bit RV32IMAFC RISC-V “SiFive E24 Core” @ 144 MHz
DISPLAY
  • Type: OLED White Colour Monochrome Display
  • Size: 0.69 inches
  • Resolution: 96x16pixels
MEMORY
  • Internal Flash Memory: 192KB
  • System Memory: 132KB SRAM
  • Expansion: None

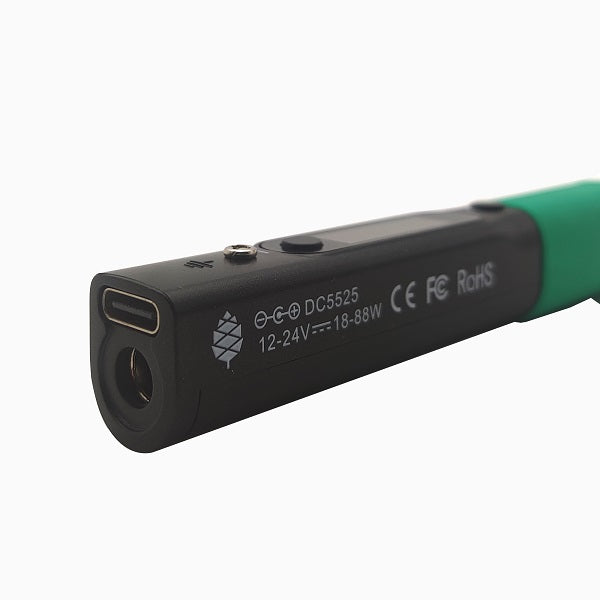

POWER PORTS
  • USB type C: PD and QC 3.0 12V-20V 3A
  • Barrel Jack: DC5525, 12V-24V DC 3A

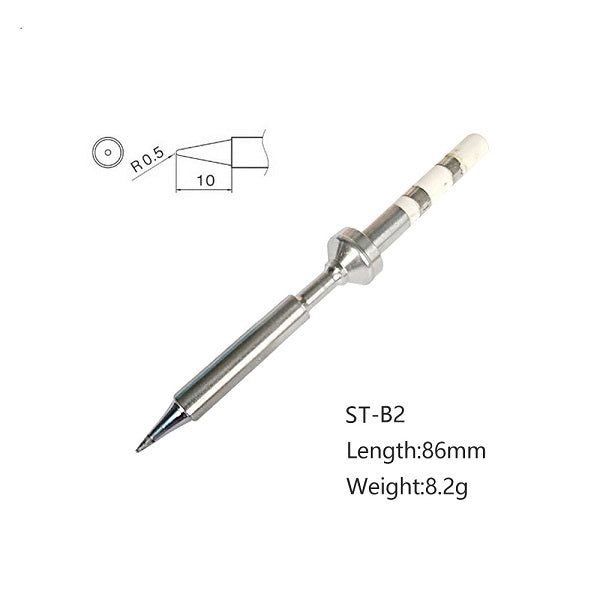

TIP
  • Type B2
  • Length: 86mm
  • Weight: 8.2g
FEATURES
  • Capable received power from either USB-C port or barrel jack.
  • GPIO break-out thru USB-C port
CERTIFICATION
  • FCC
  • CE RED
  • ROHS

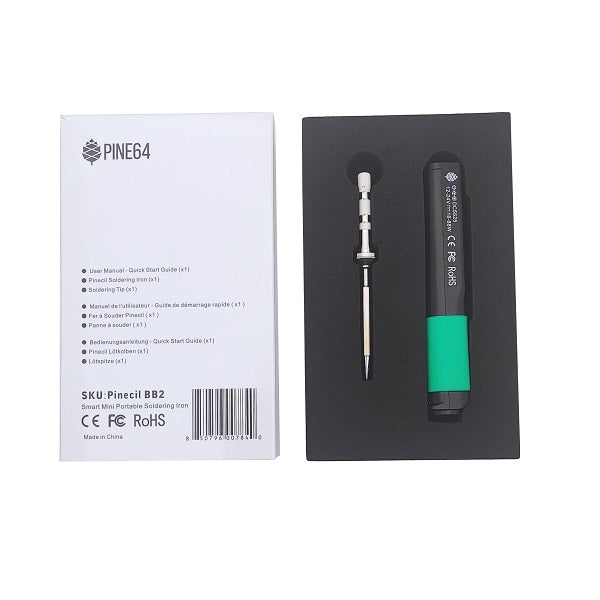

PACKAGE CONTENTS
  • Pinecil Soldering Iron
  • ST (Short Tip)-B2 Soldering Tip



Authentic Pinecil V2 from Pine64 shipped from Canada

SKU: PINECIL-BB2
