Weather Crouton

Find tutorials with example code, libraries, datasheets, and documentation on our learning page!

https://learn.breadstick.ca/breadstick/breadsticks/support-boards/i2c-devices/weather-crouton

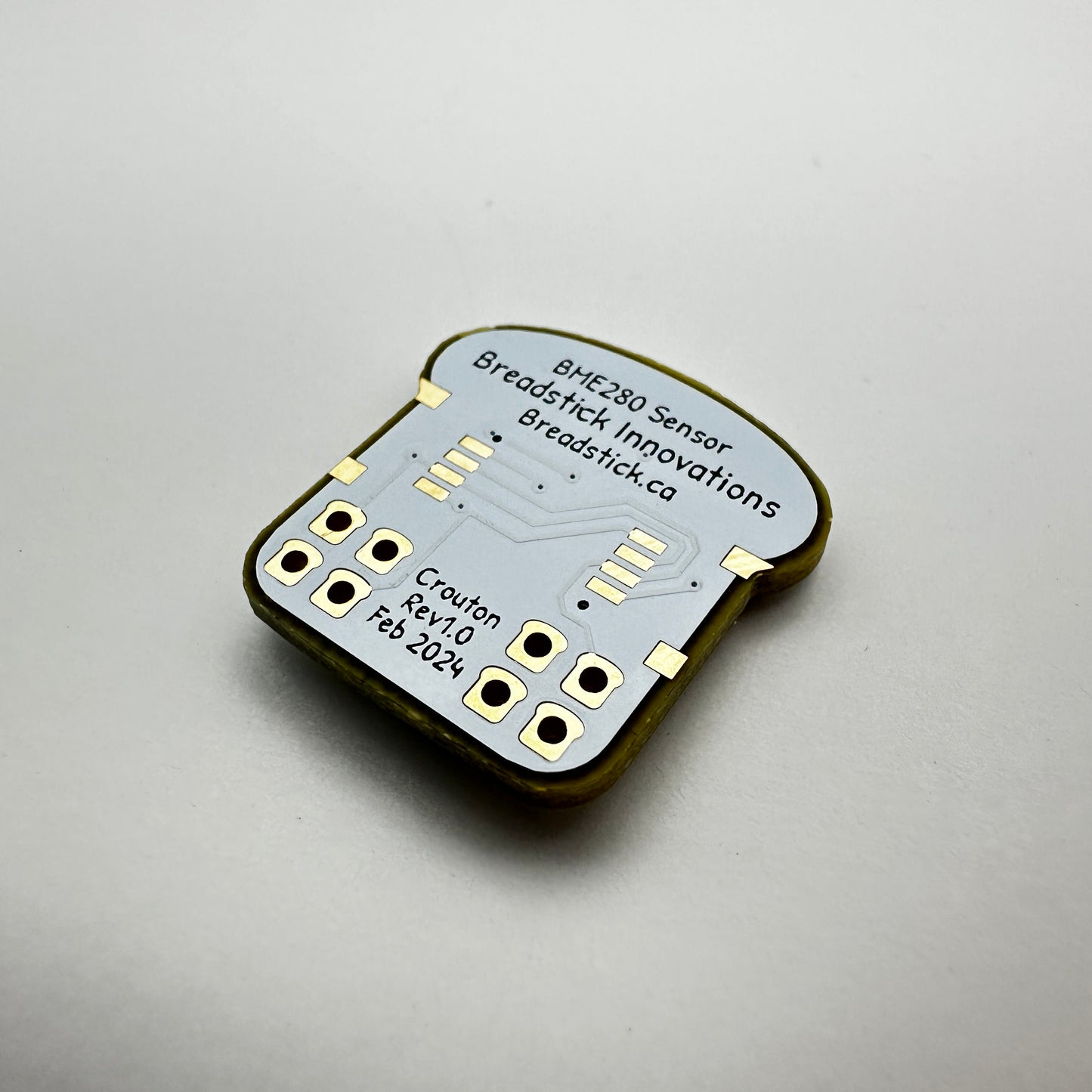

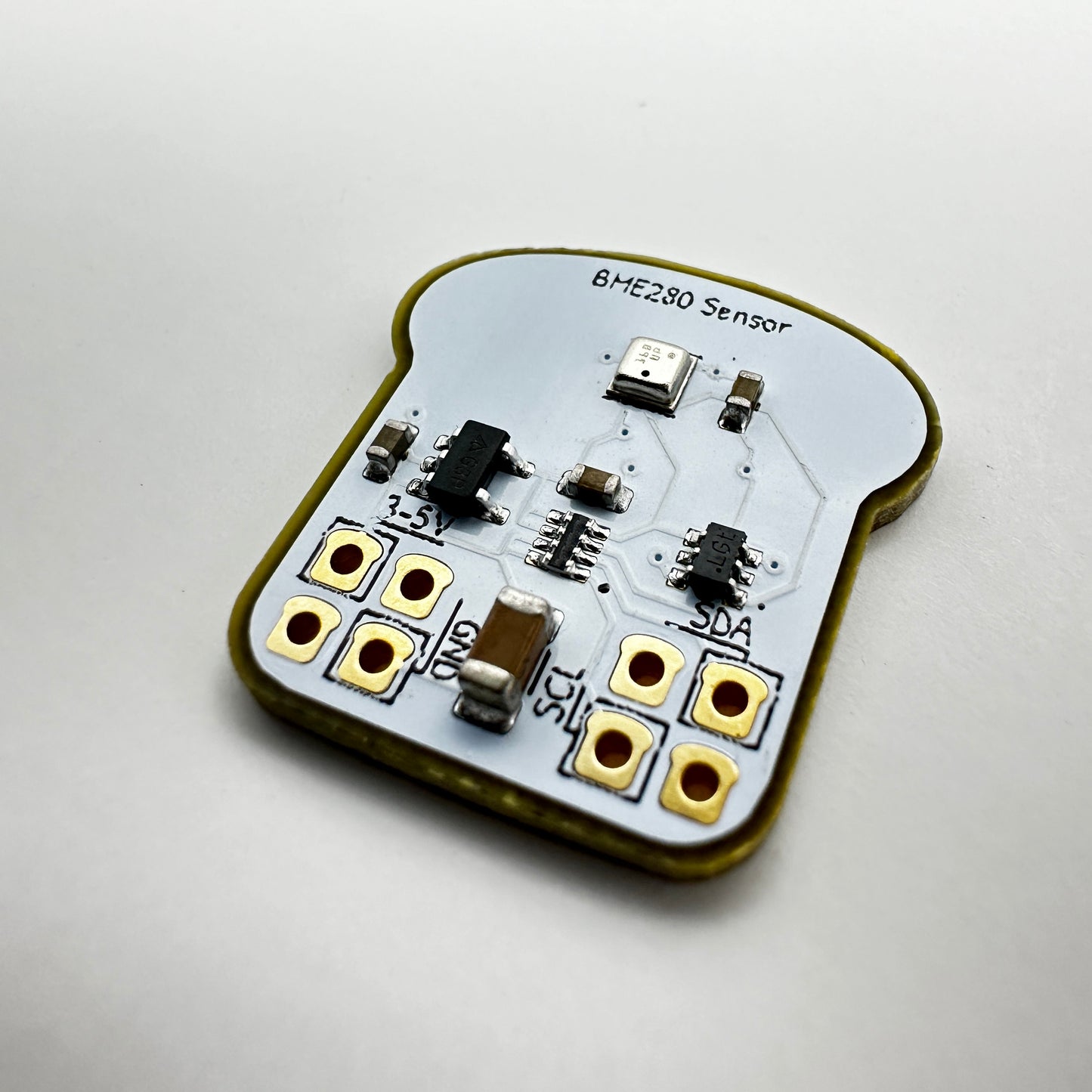

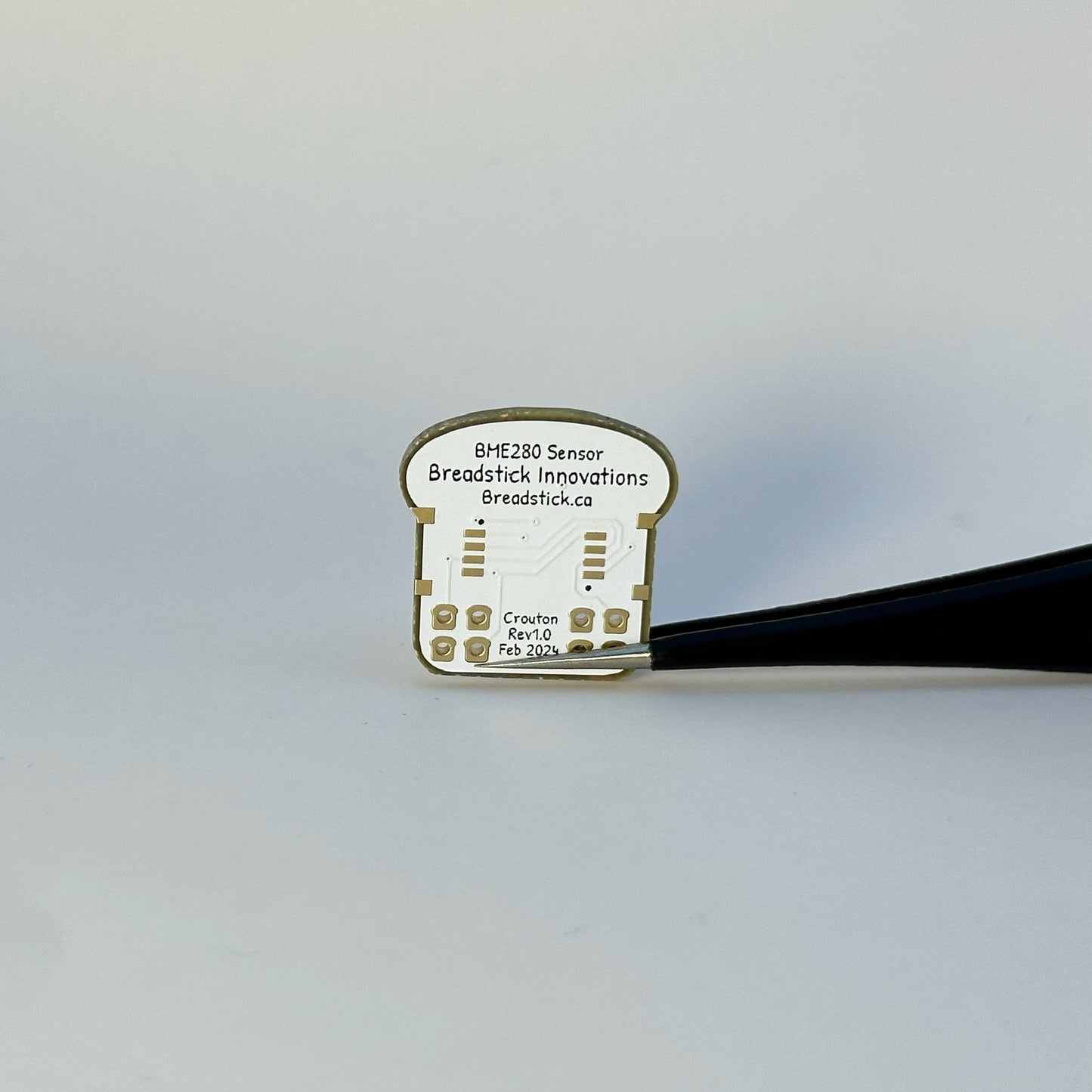

The BME280 gives our I2C Weather Crouton the ability to accurately measure temperature, humidity, and air pressure!

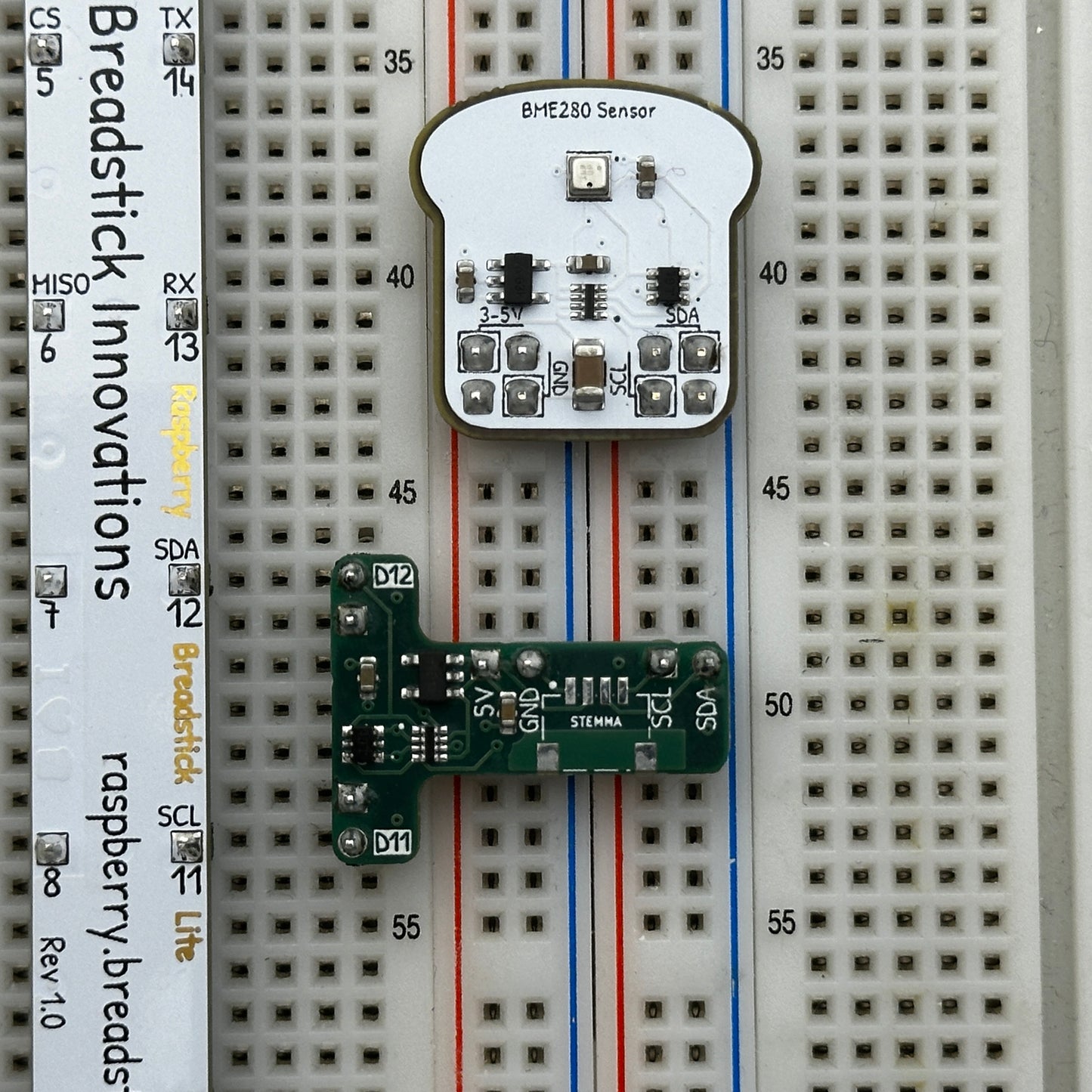

This board comes equipped with a 3.3V regulator and level shifter, so it works with both 5V and 3.3V logic. It comes with both straight and right-angle header pins to solder on. These boards are designed to be Stemma QT compatible, so we've made the optional connectors and cables available in-store.

Temperature:

• Operating Range -40°C to +85°C
• +-0.5°C accuracy from 0°C to 65°C
• +-1.25°C accuracy from -40°C to 0°C

Relative Humidity:

• Operating Range 0-100%
• +-3% Accuracy

Pressure:

• Operating Range 300-1100 hPa
• RMS noise 0.2Pa equivalent to 1.7cm
• +-1.0 hPa accuracy from 0°C to 65°C
